Immersion cleaning machines from Dust Solutions

The immersion cleaning machines from Dust Solutions clean degrease, rinse, phosphate, passivate, oil, paint and dry all kinds of metal and plastic parts.

Cleaning of parts:

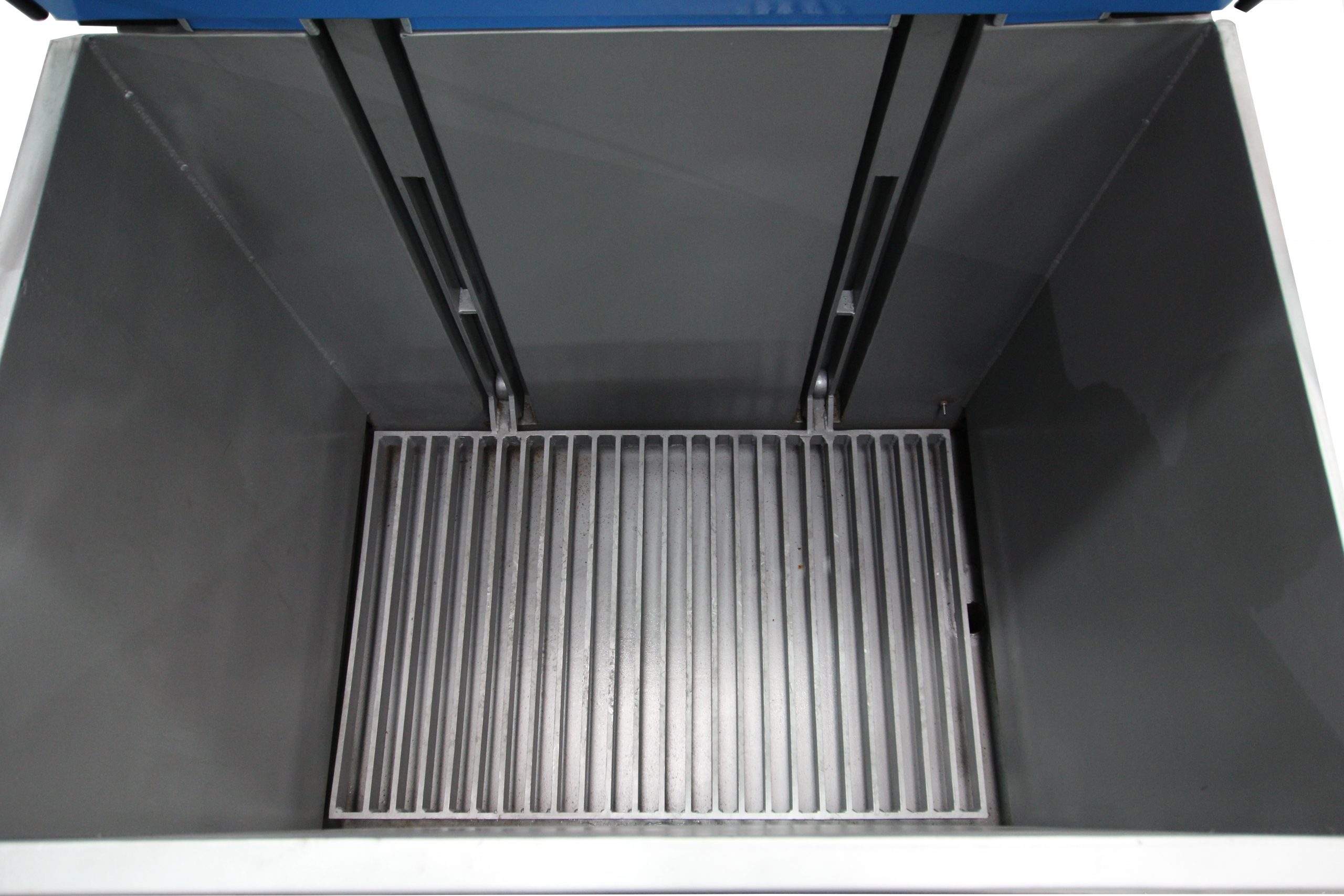

Because the soiled parts are completely immersed in the washing liquid, even the most difficult places or holes are thoroughly cleaned. The cleaning of the parts is done in a closed cabin. The up and down movement of the loading platform in the immersion machine ensures that the contact between the parts and the liquid is improved and the parts are cleaned intensively.

Our range consists of three models:

DS-DP   400-immersion machine

DS-DP   800-immersion machine

DS-DP 1000 immersion machine

Characteristics:

  • Infinitely adjustable
  • Stationary soaking possible
  • Available with or without heating
  • Lateral transport possible: via a roller conveyor in or next to the immersion machine
  • Tanks: equipped with cleaning hatch for intensive cleaning
  • CE label
  • The Dust Solutions immersion machines are available in both normal steel and stainless steel.
  • Options: on request



Benefits:

  • Immersion flushing by means of an up and down movement is the ideal solution when channels, holes and blind holes in parts need to be cleaned.
  • To promote the cleaning process you can also opt for an immersion machine equipped with ultrasonic cleaning. Due to the mechanical influence of ultrasonic cleaning, the strongest contamination is released, even when this contamination is deeply hidden in holes or channels.

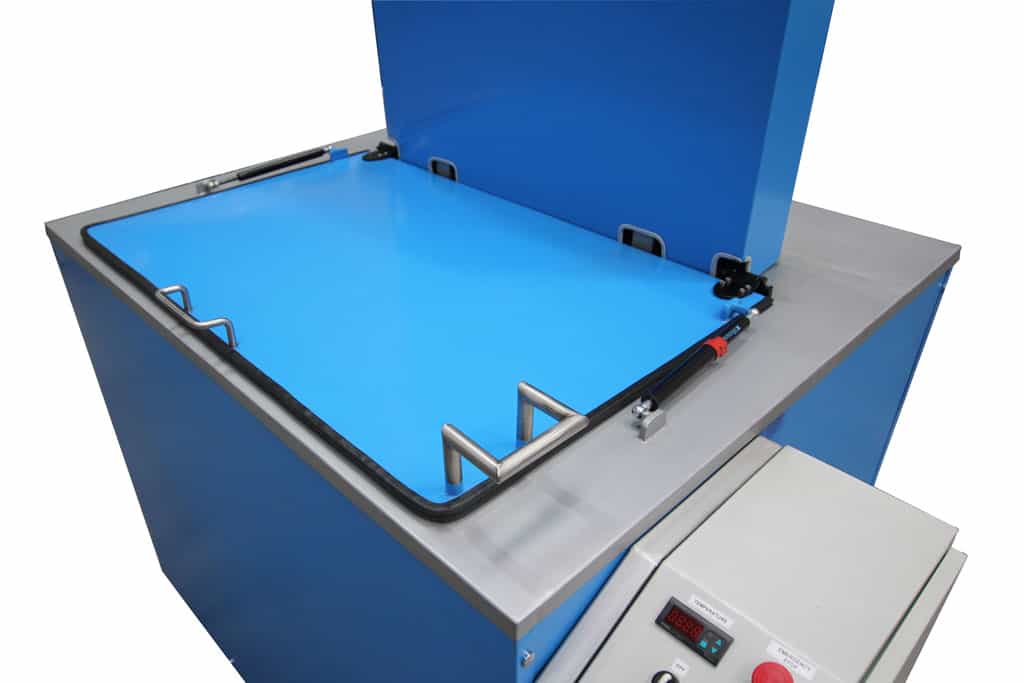

DS-Series Immersion Cleaning Machine
Immersion Agitation Cleaning Machine
Immersion Cleaning Machine
Model DS-DP 400 DS-DP 800 DS-DP 1000
Loading Capacity (Kg.) 400 800 1000
Inside Tank Material Stainless Steel AISI 316 AISI 316 AISI 316
Platform (mm.) 900x700 1100x700 1300x900
Solution Volume (lt.) 800 1200 1900
Solution Depth (mm.) 800 900 1100
Electricity (V / Hz / Phase) 380-415-440 / 50-60 / 3 380-415-440 / 50-60 / 3 380-415-440 / 50-60 / 3
Filtering System 2 Hp Circulation Pump,
500 micron Filter
2 Hp Circulation Pump,
500 micron Filter
2 Hp Circulation Pump,
500 micron Filter
Platform Movement Speed By Pneumatic Pistons By Pneumatic Pistons By Pneumatic Pistons
Platform Movement (max.- mm.) 400 500 700
Heating Resistance (Kw) 7,5x4 Kw 7,5x4 Kw 7,5x4 Kw
PLC Control and HMI Standard Standard Standard
Cycle Adjustable Through HMI Adjustable Through HMI Adjustable Through HMI
Thermostat 0-90 °C 0-90 °C 0-90 °C
Control Voltage 24 Volt DC 24 Volt DC 24 Volt DC
Required Air Pressure (Bar) 8-10 8-10 8-10
Agitation Fast or Slow Agitation Speed Fast or Slow Agitation Speed Fast or Slow Agitation Speed
Cover Lift System Optional Standard Standard
Packiging Size and Weight (mm.-Kg.) 1650x1330x2350 450 Kg 1820x1330x2350 550 Kg 2200x1900x2550 750 Kg
