CLEANING

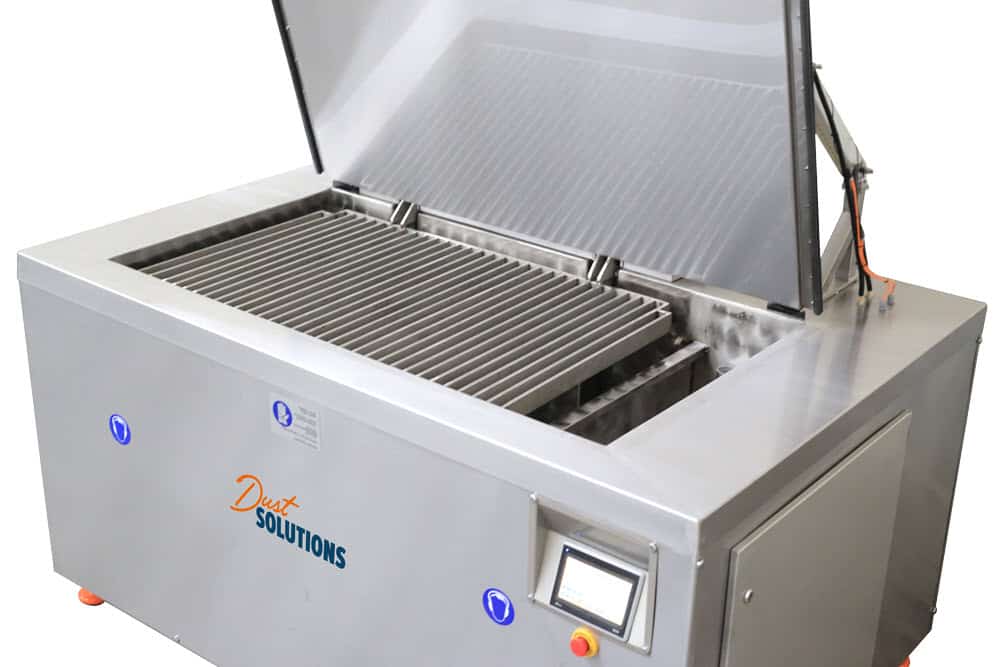

Ultra sonic immersion cleaning machines from Dust Solutions
Ultrasonic immersion machines from Dust Solutions clean degrease, rinse, phosphate, passivate, oil, paint and dry all kinds of metal and plastic parts.
Cleaning of parts:
Because the soiled parts are completely immersed in the washing liquid, even the most difficult places or holes are thoroughly cleaned. The cleaning of the parts is done in a closed cabin. The up and down movement of the loading platform combined with ultra-sonic sound waves in the immersion machine ensures that the contact between the parts and the liquid is improved and the parts are cleaned intensively.
Our range consists of two types:
DS-U compact ultrasonic cleaners specially for cleaning small parts models:
DS-U Compact 4 until DS-U Compact 24
DS-U ultrasonic immersion cleaning machines models:
DS-U 600 until DS-U 1300
Characteristics:
- Infinitely adjustable
- Stationary soaking possible
- Available with or without heating
- Lateral transport possible: via a roller conveyor in or next to the immersion machine
- Tanks: equipped with cleaning hatch for intensive cleaning
- CE label
- The Dust Solutions immersion machines are made out of stainless steel.
- Options: on request
Benefits:
- Immersion flushing by means of an up and down movement is the ideal solution when channels, holes and blind holes in parts need to be cleaned.
- To promote the cleaning process the ultrasonic immersion machine from Dust Solutions. Will give you an even better result in deep cleaning due to the mechanical influence of ultra-soon, the strongest contamination is released, even when this contamination is deeply hidden in holes or channels.
MODEL | DS-US 600 | Ds-US 800 | Ds-US 900 | DS-US 1300 | DS-US1300-S |
---|---|---|---|---|---|
Internal Tank ( mm. ) | 600×450×450 | 800×500×500 | 900×650×650 | 1300×800×750 | 1300×800×750 |
Internal Tank Capacity ( lt. ) | 100 | 160 | 350 | 720 | 720 |
Inside Tank Material Stainless Steel | AISI304 | AISI304 | AISI304 | AISI304 | AISI304 |
Platform ( mm. ) | 550 x 300 | 750 x 400 | 850 x 500 | 1250 x 700 | 1250 x 700 |
Platform Elevator | optional | optional | standard | standard | standard |
Automatic Cover (Lifting And Closing) | optional | optional | standard | standard | standard |
Loading weight ( kg. ) | 75 | 150 | 250 | 400 | 400 |
Ultrasound Power ( Weff/Wpeak ) | 750 / 1500 | 1500 / 3000 | 3000 / 6000 | 4500 / 9000 | 4500 / 1200 |
Frequency ( Khz ) | 27 | 27 | 27 | 27 | 27 |
Heating resistance ( kW ) | 4,5 Kw | 7,5 Kw | 9 Kw | 15 | 15 |
PLC Control | optional | optional | standard | standard | standard |
Touch-Screen | optional | optional | standard | standard | standard |
Electric (V/phase) | 220-380/3 | 220-380/3 | 220-380/3 | 220-380/3 | 220-380/3 |
Timer | 0-90 minutes | 0-90 minutes | Adjustable Through HMI | Adjustable Through HMI | Adjustable Through HMI |
Thermostat | 0-80°C | 0-80°C | 0-80°C | 0-80°C | 0-80°C |
Oil Separator | not available | not available | standard | standard | standard |
Liquid Level Control and Automatic Feeding System | optional | optional | optional | standard | standard |
