Food DC 1800 eco




Specifications DC 1800 eco
HxWxL mm 740 x 380 x 380
Mass 10 kg
Intake/Exhaust Ø 50 mm
Hose length 5 m ( Ø38)
Max vacuum pressure 24 kPa
Max air flow 190 m³/ hour
Power 1285 W, 230 V
Surface fine filter 1.5 m²
Collection efficiency fine filter 99.9 %
Collection efficiency HEPA filter H13 99.995%
Surface HEPA filter 0.85 m²
Collection capacity 15 L
Sound level 66 dB (A)
Extra option autostart

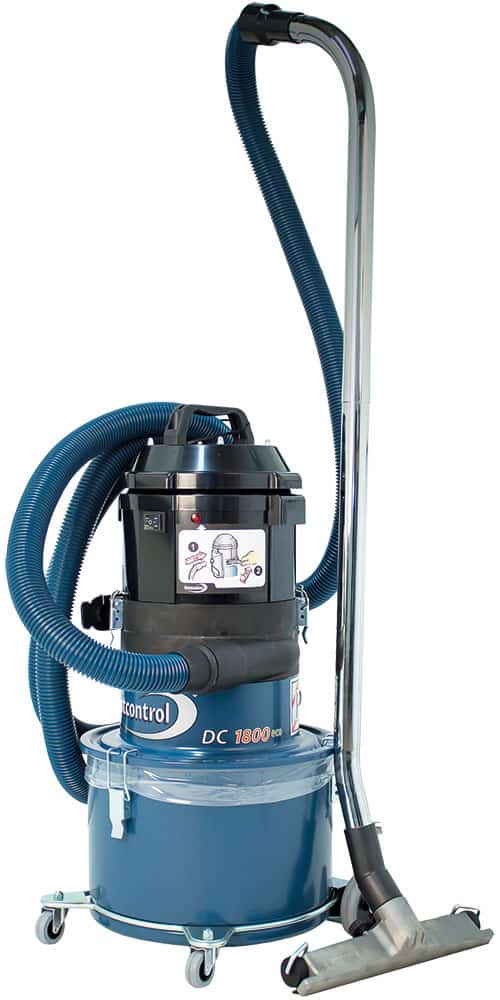

DC 1800 eco Mobile dust extractor with steel container

Powerful mobile dust extractor suitable for source extraction and cleaning in heavy circumstances in the food industry. Also suitable for extraction of substances that can present a health hazard.

The dust extraction in the filter unit takes place in three phases. Because of the filter unit cyclone the dust particles that are at least 10 µm. in size are extracted. The dust is then filtered by a cartridge filter. The remaining very fine dust, if still present, will be extracted with the help of a micro filter (HEPA13) with 99.995% dust collecting efficiency.

The filter unit can be cleaned manually through the so-called reverse-pulse system. The conical shape of the filter and the highly effective cleaning method guarantee a long life span for the collector and long lasting maximal suction power. The vacuumed material is collected in a synthetic bag underneath the unit. The filters can be changed dust free.

Equipped with the new eco technology, for lower energy consumption and higher efficiency.

Click here for this extractor in ATEX edition.

Product leaflet Dustcontrol DC 1800 Eco ATEX
User manual, parts and drawing
Dustcontrol DC 1800 Eco
