Stationary Welding Smoke Extractor Metal Fume 1.1kW

Art. Nr. CF Eco Jet Pulse
P-560 CF-Eco – 1.1kW/1Phase/230V/50Hz
P-561 CF-Eco – 1.1kW/3Phase/400V/50Hz
P-541 Polyester fine filter
P-544 HEPA Filter
AK-002 Active Carbon Filter

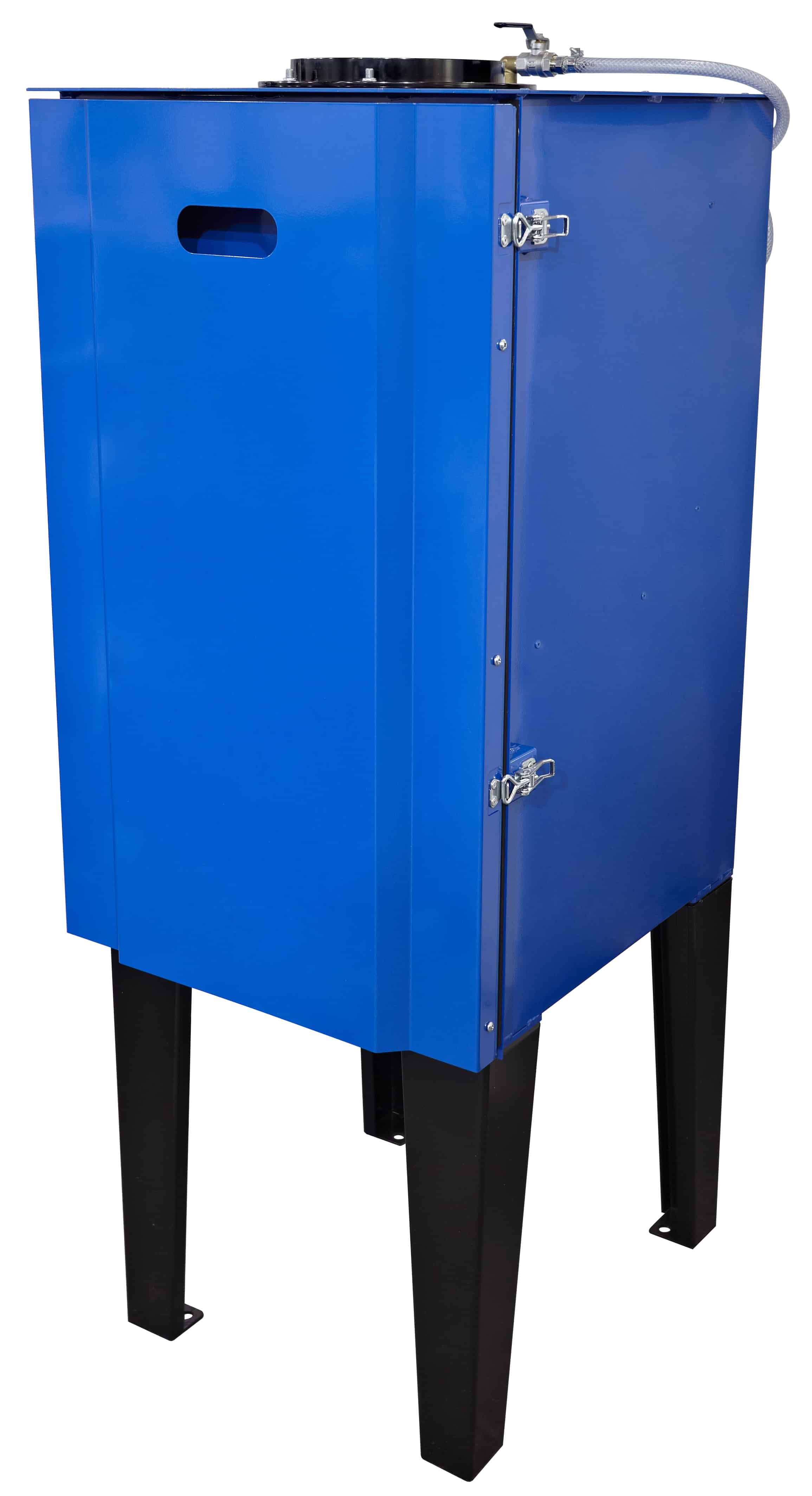

Stationary Welding Smoke Extractor Metal Fume 1.1kW

CF-Eco

The CF-Eco filter is designed for use in combination with the Flexi extraction arms. With a filter efficiency of up to 99.9%, the CF-Eco is suitable for filtering welding fumes and fine particles in the metal industry. The clean air is recirculated into the room without heat loss.

Replaceable filter cartridge

The filtration takes place in two steps; pre-separation of coarse particles and filtration of fine particles with a replaceable filter cartridge. Replacement is easy and only takes a few minutes because of the front access panel. The remaining very fine dust, if present, can be separated by a HEPA filter. HEPA filter is optional.

Jet-Pulse filter cleaning

The Jet-Pulse filter cleaning ensures that the extraction remains optimal. The filter cleaning system cleans the cartridge in a few minutes. After cleaning, the tray in the unit can be emptied and the CF-Eco is ready for use again.

HEPA filter & Active Carbon Filter

CF-Eco can be equipped with a HEPA filter as an accessory when used for stainless steel welding/soldering and/or with Active Carbon Filter for filtering odours and vapours.

A compact total solution

The CF-Eco for the metal industry is made of powder coated sheet steel. The suction is at the top of the cabinet. The CF-Eco can be connected to a central extraction system.

The dimensions are: 1305mm x 500 x 595 mm. (hxwxd).

The weight: 85 kg.

The air volume is 2000 m3/h

The noise level is 70 dB

Filter area is 14m2
