Stationary Welding Vapour Suction Aviation Odour 1.1kW

Art. Nr. CF Eco Jet Pulse
P-560A CF-Eco Active Carbon – 1.1kW/1Phase/230V/50Hz
P-561A CF-Eco Active Carbon – 1.1kW/3Phase/400V/50Hz
P-541 Polyester fine filter
P-544 HEPA Filter
AK-002 Active Carbon Filter

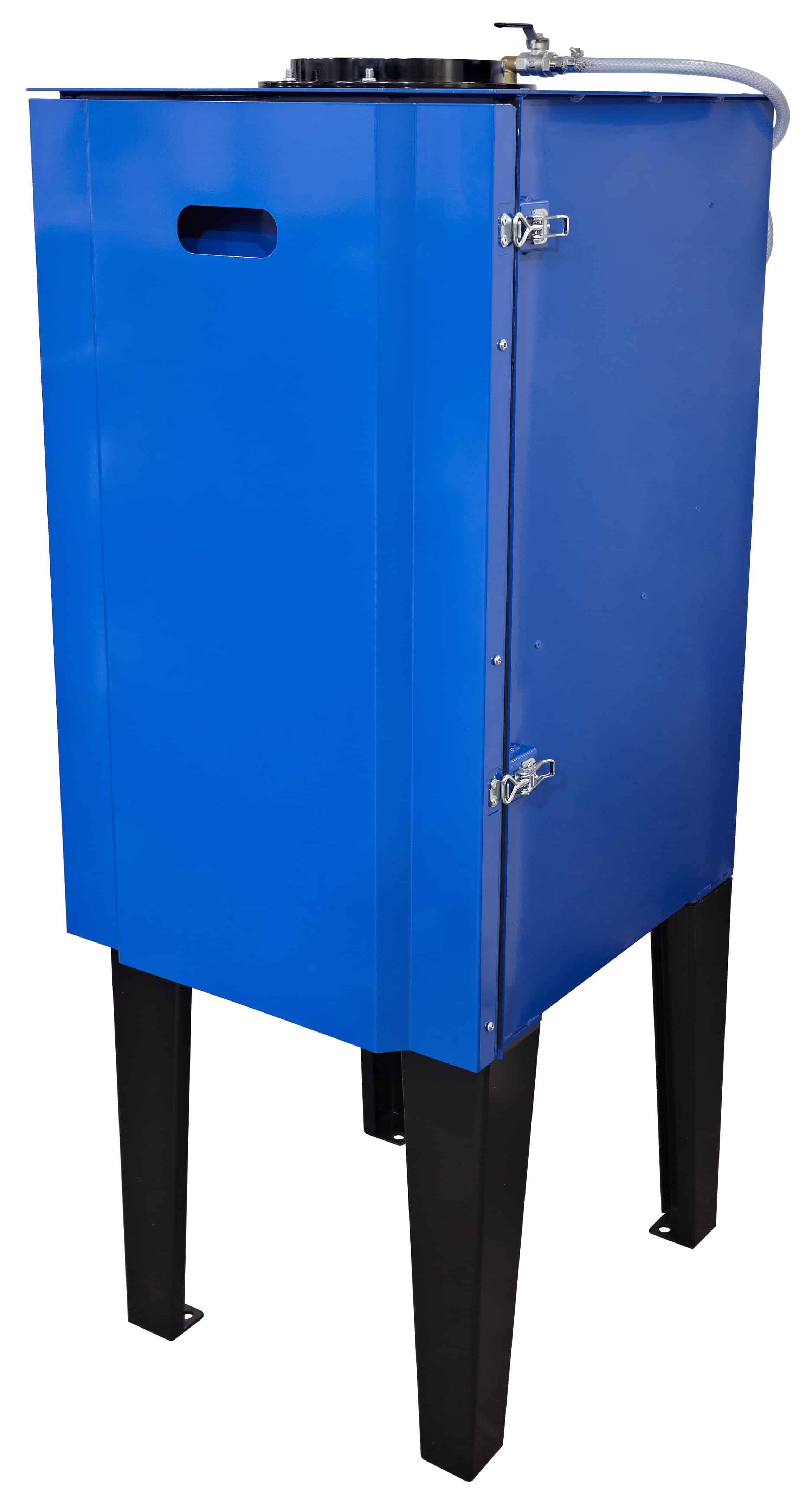

Stationary Welding Vapour Suction Aviation Odour 1,1kW

CF-Eco Active Coal

The CF-Eco Active Coal with activated carbon filter is designed for use in combination with the Flexi extraction arms. With a filter efficiency of up to 99.9%, the CF-Eco is suitable for filtering odours and vapours in the aviation industry. The clean air is recirculated in the hangar without heat loss.

Jet-Pulse filter cleaning

The Jet-Pulse filter cleaning ensures that the extraction remains optimal. Filter cleaning cleans the cartridge in a few minutes. After cleaning, the tray in the unit can be emptied, and the CF-Eco is ready for use again.

Replaceable filter cartridge

Filtration takes place in two steps; pre-separation of coarse particles and filtration of fine particles with a replaceable filter cartridge. Replacement is easy

and only takes a few minutes because of the front access panel. The remaining very fine dust, if present, can be separated by a HEPA filter. HEPA filter is optional.

HEPA filter

CF-Eco Active Carbon can be equipped with a HEPA filter as an accessory when used for stainless steel welding/soldering.

A compact total solution

The dimensions are: 1305mm x 500 x 595 mm. (hxwxd).

Weight: 85 kg.

The air volume is 2000 m3/h

The noise level is 70 dB

Filter area is 14m2
