Stationary Welding Vapour Suction Metal Dust 1.1kW
| Art. Nr. | CF Eco Jet Pulse |
|---|---|
| P-560H | CF-Eco HEPA – 1.1kW/1Phase/230V/50Hz |
| P-561H | CF-Eco HEPA – 1.1kW/3Phase/400V/50Hz |
| P-541 | Polyester fine filter |
| P-544 | HEPA Filter |
| AK-002 | Active Carbon Filter |
Stationary Welding Vapour Extraction Metal Dust 1.1kW

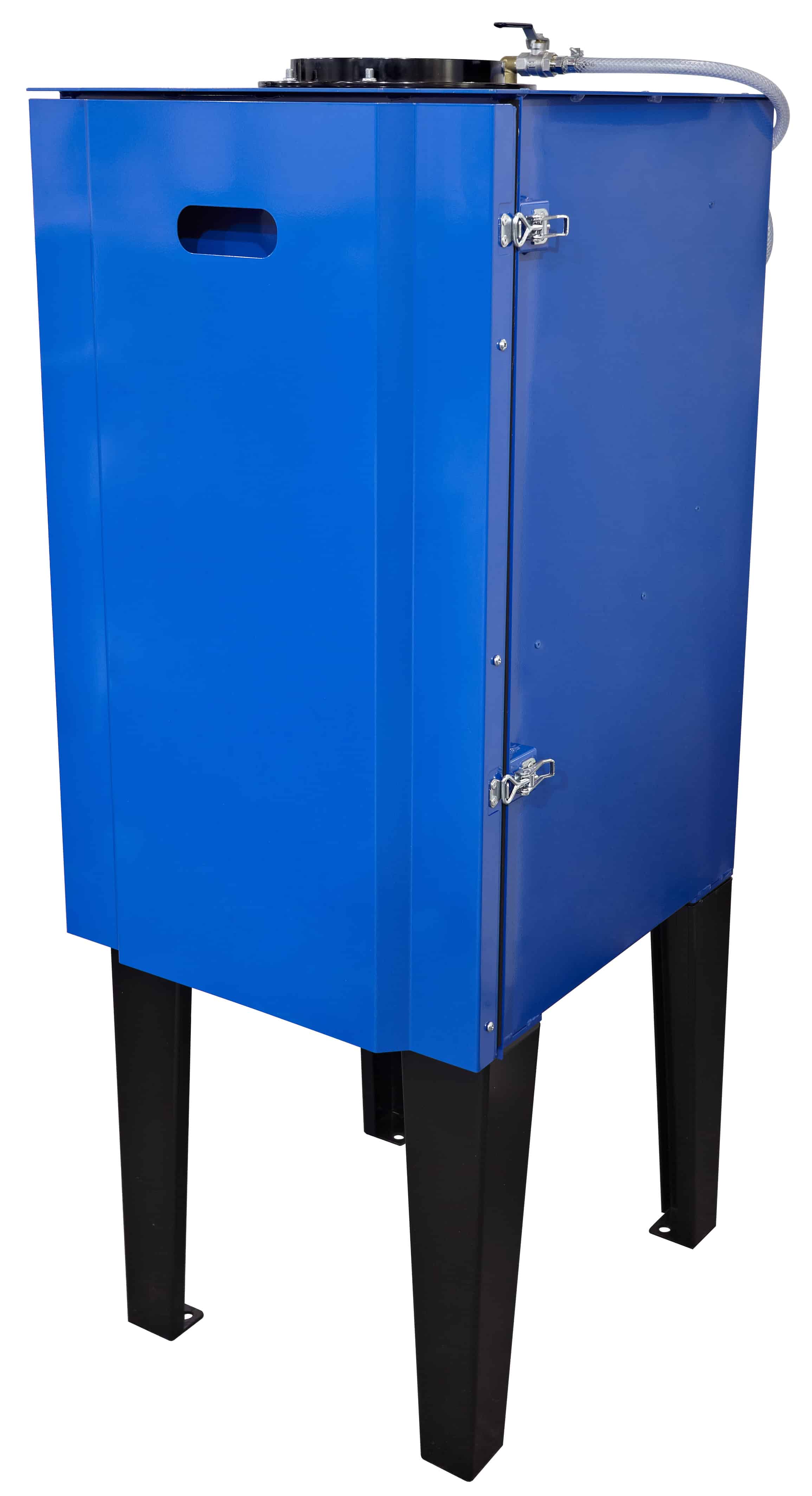

CF-Eco HEPA
The CF-Eco HEPA filter is designed for use in combination with the Flexi extraction arms. With a filter efficiency of up to 99.9%, the CF-Eco HEPA is suitable for the filtration of fine dusts in the metal industry. The clean air is recirculated into the room without heat loss.
Replaceable filter cartridge
Filtration takes place in two steps; pre-separation of coarse particles and filtration of fine particles with a replaceable filter cartridge. Replacement is easy
and only takes a few minutes because of the front access panel. The remaining very fine dust is separated by a HEPA filter.
HEPA filter
CF-Eco HEPA is equipped with a HEPA filter with a filtration degree of 99.995% for stainless steel welding/soldering.
Jet-Pulse filter cleaning
The Jet-Pulse filter cleaning ensures that the extraction remains optimal. Filter cleaning cleans the cartridge in a few minutes. After cleaning, the tray in the unit can be emptied, and the CF-Eco HEPA is ready for use again.
A compact total solution
Weight: 85 kg.
The air volume is 2000 m3/h
The noise level is 70 dB
Filter area is 14m2
