Laboratory DC Tromb 400A

Specifications DC Tromb 400A
HxWxL mm 1390 x 560 x 697
Mass 50 kg
Intake / Exhaust Ø 76 mm
Hose length 5-25 m
Max under pressure 25 kPa
Max air flow 420 m³/hour
Power 3000 W, 230 V
Surface fine filter 2.5 m²
Collection efficiency fine filter 99.9%
Collection efficiency HEPA filter H13 99.995%
Surface HEPA filter 2.2 m²
Collection capacity 40 L
Sound level 70 dB (A)

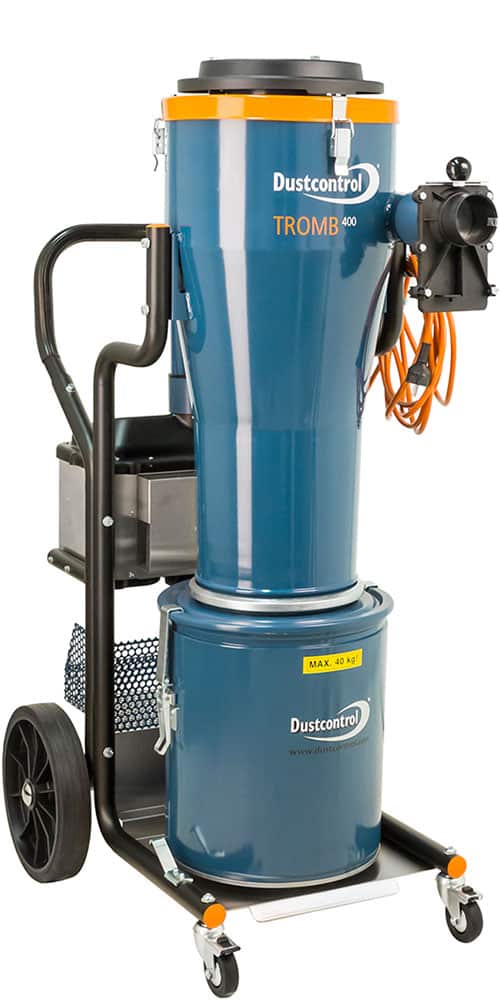

DC Tromb 400A mobile dust extractor with steel container

The DC Tromb is the most powerful dust extractor for 230V on the market, designed for source extraction and cleaning in heavy circumstances. Exceptionally suitable for extracting substances that contain a health hazard. The maximal air flow of no less than 420m3/h is more than enough for extreme cleaning conditions and applicable for the most difficult jobs.

The dust extraction in the filter unit happens in two phases. Because of the filter unit cyclone the dust particles that are at least 10 µm. in size are extracted. The dust is then filtered by a cartridge filter. The remaining very fine dust, if still present, will be extracted with the help of a micro filter (HEPA13) with 99.997%dust collecting efficiency.

The filter unit can be cleaned manually through the so-called reverse-pulse system. The conical shape of the filter and the highly effective cleaning method guarantee a long life span for the collector and long lasting maximal suction power. The vacuumed material is collected in a synthetic bag underneath the unit. The bag and the filters can be changed dust free.

All Tromb vacuums are equipped with the latest eco technology which leads to lower energy usage and higher efficiency.

Click here for this vacuum in the ATEX edition.

Product leaflet Dustcontrol DC Tromb 400
User manual, parts and drawing
Dustcontrol DC Tromb 400
